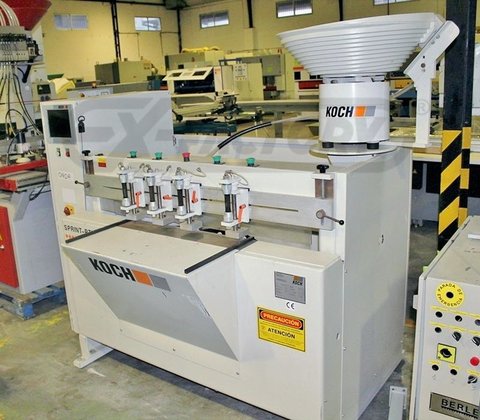

2001 KOCH SPRINT-PTP-3 CNC DRILL/ROUTER

2001 KOCH SPRINT-PTP-3 CNC DRILL/ROUTER [GD-010640] in Europe

Location:
Europe
Manufacturer:
Koch
Model:
SPRINT-PTP-3

Specifications

Condition:
used
Year:
2001
Recnum:
GD-010640
Comments:
Well maintained, beautiful looking machine!
Machtype:
CNC DRILL/ROUTER
Condition info:
(6-8) Very good condition [8]
Current status:
Active
Elect./voltage:
400 V, 50 Cy, 3 Ph.
Appr. repl. cost:
78000

Description

Automatic step-by-step, Boring, Glue Injection & Dowel Insertion into panel components, drawer parts, chair pieces, etc., at random spacing; "X" Axis positioning speed 105 MPM (345 FPM).

-- Work Capacity: 20 mm - 1,200 mm (3/4" - 47.2") Panel length, 100 - 1,200 mm (4" - 47.2") panel width, 12 mm - 40 mm (0.47 - 1.6") max. material thickness, max. boring depth 50 mm (1.96"); standard for 8 mm dia. and 35 mm long dowels.

-- Equipped with: (1) Horizontal boring spindle, 6,000 RPM & powered by 2.4 HP (1.8 kW) motor.

-- Includes: (6) Stock clamping cylinders; high pressure patended "KOCH ELC" glue injection unit & dowel inserter head; positioning speed of working units at 105 MPM (345 FPM), boring & insertion capacity up to (60) dowels/Min.

-- Complete with: Overhead vibrating hopper for dowel feeding, "air tight" pressurized 1:1 glue tank & "ELC" Electronic Glue Detection System (special patended "KOCH design" precision dosing valve w/digital adjustment).Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistics� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
