13 1/4" x 24" cc,
Location:
Salt Lake City, UT
Manufacturer:
Monarch lathes
Spindle Bore:
1 3/8”
Spindle Nose:
CAMLOCK D 1-3

Specifications

Condition:
used
Stock number:
8689
Division:
Metalworking
Main motor:
5 HP
Electricals:
440 Volt
Spindle bore:
1 3/8”
Spindle nose:
CAMLOCK D 1-3
Width of bed:
10 ½”
Approx. weight:
3,450 Lbs.
Spindle speeds:
variable changes 0 to 3,000 RPM
Swing over bed:
13 ¼
Feeds in inches:
50 changes .50 to 16.1
Feeds in metric:
50 changes 0.12 to .406 in millimeters per rev
Tailstock taper:
# 2 MT
Swing over slide:
7 ¼
Tailstock travel:
Threads in inches:
60 changes 3 to 184 TPI
Threads in metric:
60 changes 1.5 to 11.5 MM
Approx. dimensions:
68” x 70” x 42”
Max center distance:
24”
Subcategory:
Lathes, engine

Description

We are pleased to offer, subject to prior sale and our conditions of sale, the following for your consideration: Solid State Inverter Variable Speed Drive

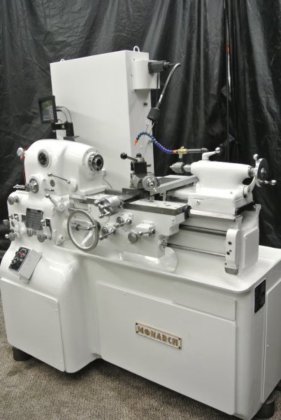

Pre-Owned Monarch Lathe
Model:EESerial No: 52251
Very Low Hour-Inch/Metric
General specifications are approximate and are subject to verification.
Swing over bed:13 ¼
Swing over slide:7 ¼
Max center distance:24”
Spindle nose: CAMLOCK D 1-3
Spindle bore:1 3/8”
Spindle speeds: variable changes 0 to 3,000 RPM
Tailstock Taper: # 2 MT
Tailstock Travel:4”
Width of bed: 10 ½”
Threads in Inches: 60 changes 3 to 184 TPI
Feeds in Inches:50 changes .50 to 16.1
Threads in Metric: 60 changes 1.5 to 11.5 MM
Feeds in Metric:50 changes 0.12 to .406 in millimeters per rev
Main motor: 5 HP
Electricals:440 Volt
Approx. Weight: 3,450 Lbs.
Approx. Dimensions:68” x 70” x 42”
Complete with:
•Solid State Variable Speed Drive
•Inch/Metric Threading & Feeds
•2 Axis Newall DRO
•Aloris AXA Toolpost with 5 Holders
•Jacobs Keyed Drill Chuck with MT2 Shank
•Hardened Ways
•Machine Light
•Built In Chip Pan
Condition: Great Toolroom Lathe. From Aerospace Research Facility
