2003 HOMAG CHT 51 REAR

2003 HOMAG CHT 51 REAR LOAD, AUTOMATIC PANEL SAW [PH-012185] in Spain

Location:
Spain
Price:
$38,632 USD
Manufacturer:
Homag
Model:
CHT 51

Specifications

Condition:
used
Year:
2003
Recnum:
PH-012185
Comments:
Available for inspection any time!
Machtype:
REAR LOAD, AUTOMATIC PANEL SAW
Condition info:
(6-8) Very good condition [6]
Current status:
Active
Elect./voltage:
380 V, 50 Cy, 3 Ph.
Appr. repl. cost:
187000

Description

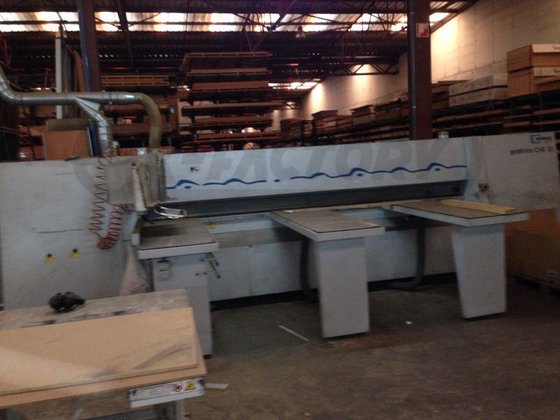

HOMAG CHT 51 REAR LOAD, AUTOMATIC PANEL SAW

-- Specifications: 125.9" (3,200 mm) max. rip cutting cap.; 4" (102 mm) main blade projection; 15 HP (11.3 kW) main & 2 HP (1.5 kW) scoring motor, 4,400 RPM main blade & 5,100 RPM scoring blade.

-- Saw carriageTravel of 20 - 262 FPM (6 - 80 MPM), return speed of 262 FPM (80 MPM), powered by electronically controlled AC inverter drive; "Power-Lock" quick blade release system.

-- (3) Settings for cutting height (30/60/90 mm) via sensor in the pressure beam, automatic cutting length controlled by optical sensor which detects the blade is through the cut; automatic programmable grooving to a depth of 30 mm.

-- Programmable pusher fence:(6) material grippers, 82 FPM (25 MPM) forward speed & 242 FPM (80 MPM) return speed, AC inverter driven, center-mounted Servo motor with rack & pinion system; automatic side aligner stroke 4" - 76" (102 x 1,930 mm) holds strips against angle fence; dust & friction-free no-contact magnetic measuring system.

-- Operator & Machine Control:PC Controller with: HOMAG "IPC 500" + "WINDOWS 2000" Operating system; full "REAL-TIME" user friendly operating menu; 15" Full color graphics monitor; optical mouse & standard keyboard for data entry; on-board basic "Easy Cut" optimizer organizes up to (15) pieces from (3) different materials; down loading data from a office PC is possible; possibility to link 3rd party optimizing software.

-- Lift Table:Automatic 4-column, 120" x 86" (3,200 x 2,200 mm) rear load lift table with fork cut-outs, 29" max. bunk height; 12,000 Lbs lift cap., "Heavy Duty" powered lift table with 4 HP (3 kW) motor.

-- Complete with:(3) Air flotation tables 23" x 72" (584 x 1,829 mm), tables are individually selectable with a common 5 HP (4 kW) blower motor; safety curtain & safety bar cover blade cutting line w/saw blade, and safety panels enclose rear saw table area.

-- Actual model is HOMAG CHT 51-38/26
