Location:
Magdeburg, Germany
Price:
$2,373 USD
Manufacturer:
VEMAC Geo
Model:
Holzhäcksler Holzschredder Häcksler NEU Eco17H

Specifications

Condition:
new
Year:
2016
Power:
approx. 7-8m³ per hour
Cutout:
From 10 cbm per hour (depending on type of wood)
Weight:
400 Kg
Woodchip length:
2-8 cm
Number of cutting knives:
2 pieces. Can be used on both sides
Size of the chopped material:
2-8cm
Rotor weight (blade support disc):
82 kg
Dimensions in built-up state in cm:
127x132x188 cm
Subcategory:
Forestry machinery

Description

Please visit our online shop www.traktorshop24. Com

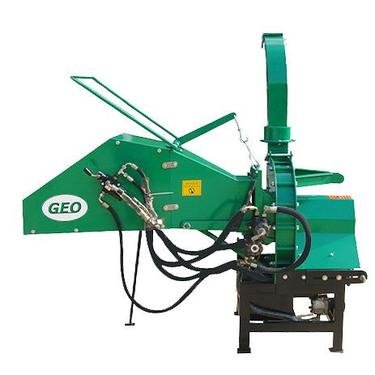

Wood chopper Geo Eco17H
With up to 20 cm wood pull
360 ° rotatable wood discharge
With safety valve
With 2 hydraulic feed rollers
Size of the chopped material: 2-8cm
Power: approx. 7-8m³ per hour
The shredder has its own hydraulic oil tank, so you do not need a hydraulic connection on the tractor, only PTO connection!
This shredder is mounted on the 3-point suspension Cat.1 of the tractor. The drive is controlled by a PTO shaft. A tractor power of at least 20 HP is required. The shredder has a supply and return flow. The wood is transported hydraulically via 2 feed rollers to the knife. The chopper has a total of 2 knives and a counter-cutting. Total weight approx. 400kg. Delivery is in the pre-assembled state.
Technical specifications:
- Hydraulic feed system via 2 feed rollers with forward and reverse travel
- Drive via the PTO shaft
- recommended for tractors over 20 hp
- Drive 540 rpm
- 3 point suspension Cat 1, can also be converted to Cat. 2 or 3
- PTO connection
- Number of cutting knives: 2 pieces. Can be used on both sides
- Rotor weight (blade support disc): 82 kg
- Safety bracket for the stop of the intake, as well as forwards and backwards
- ejection tube rotatable by 360 °
- ejection up to approx. 10 m
- Dimensions in built-up state in cm: 127x132x188 cm
- Weight: 400 Kg
- Max. Diameter of pieces to be shredded: approx. 20 cm
- Cutout: From 10 cbm per hour (depending on type of wood)
- Woodchip length: 2-8 cm
- Color green
Delivery by our shipping company for 149,00 Euro Germany-wide possible, delivery within Europe on request.
Further information on www. Tractorshop24. Com or www. Vemac24. Com
We also have mulcher, mowers, rotary mowers, ground reversing mills, front loaders, rear dredges, plows, transport boxes, pallets forks, trailers ...
