2003 SCMI ROUTECH RECORD 125

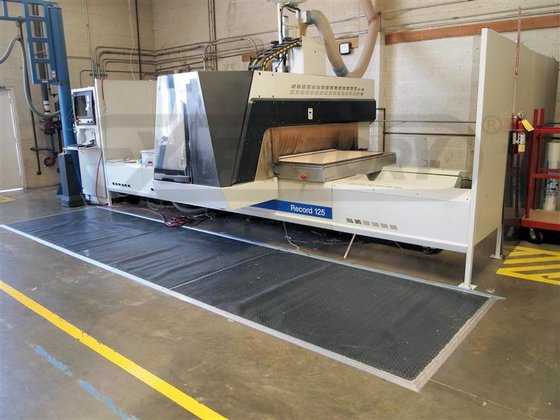

2003 SCMI ROUTECH RECORD 125 FLAT TABLE MACHINE (W/ATC/BORING) [FT-010387] in United States

Location:
United States
Manufacturer:
SCM
Model:
RECORD 125

Specifications

Condition:
used
Year:
2003
Recnum:
FT-010387
Comments:
An exceptionally well-maintained SCMI ROUTECH...ready to go to work for you!
Machtype:
FLAT TABLE MACHINE (W/ATC/BORING)
Condition info:
(7-9) Excellent condition [7]
Current status:
Active
Elect./voltage:
208-230/460 V,60 Cy, 3 Ph.
Appr. repl. cost:
160000

Description

SCMI ROUTECH RECORD 125 FLAT TABLE MACHINE (W/ATC/BORING):

-- Specifications:5' x 10' Single Table machine: stationary extruded aluminum table is machined with a square grid pattern for fixturing parts,Grid pattern allows use of vacuum pods or closed cell rope gasketing material and use of spoil boards for "nested based machining".

-- Working field:"X" axis 125" (3,175 mm), “Y� axis 60� (1,524 mm) , "Z" axis stroke is 12" (305 mm).

-- Positioning speed:"X" axis 260 FPM (80 MPM), "Y" axis 180 FPM (55 MPM), "Z" axis 82 FPM (25 MPM);Closed loop AC Servo drive system driving precision ground ball screws, all axes ride on extra large precision profile linear guideways.

-- Boring Unit:(12) vertical spindles, (7) in "X" axis & (5) in "Y" axis;(6) Horizontal spindles with (2+2) in "X" axis & (1+1) in "Y" axis.

-- Machining:(1) 15 HP (11.2 kW) "Power 2000" Electro spindle w/lifetime lubrication & HSK F63 adaptor, spindle speeds from 6,000 - 18,000 RPM;(1) 12-position ATC tool plate mounted on the head for "on the fly" ATC.

-- Operator & Machine Control:PC Front end with XILOG Plus + WINDOWS operating system; "NUM 1000" PLC featuring (3) axes simultaneous control,15" high resolution CRT; 1.2 GB Hard drive, ergonomic industrial keyboard & mouse; 1.44MB floppy disk drive; serial ports for RS-232; all housed in a separate dust free cabinet

-- Complete with:(1) 250 m³/Hr vacuum pump & (1) 100 m³/Hr vacuum pump; safety mats.

-- Actual Model is SCMI Routech Record 125.
