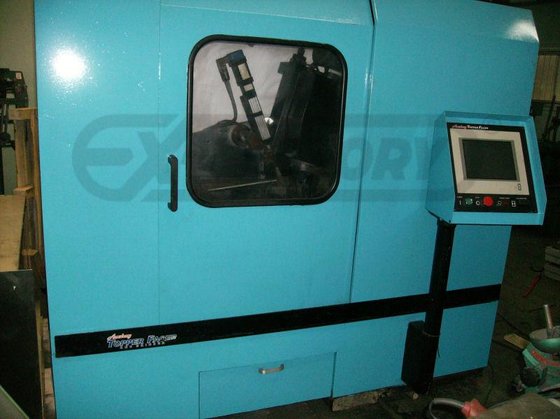

2001 ARMSTRONG TOPPER FACER AUTOMATIC
Location:
Canada
Price:
$20,340 USD
Model:
TOPPER FACER

Specifications

Condition:
used
Year:
2001
Recnum:
GS-011293
Comments:
A Machine like this doesn't come on the market often!
Machtype:
AUTOMATIC FACE & TOP GRINDER
Condition info:
(3-6) Good condition [6]
Current status:
Active
Elect./voltage:
575 V, 60 Cy, 3 Ph.
Appr. repl. cost:
60000

Description

CNC circular saw Topper/Facer is designed to gring the tops and faces of triple chip, variable pitch and alternating top or face.

-- An industrial-grade computor and touch scree interface give the operator complete control of all functions. Grinding parameter for up to 14 saws, 6" to 36" diameter, can be stored in memory for instant set up.

-- Features:

-- Pentium 233 MMX P.C. control.

-- Touch screen for easy operation.

-- Store memory for 20 different preset saw configurations.

-- 20 different tooth patterns with up to 10 teeth in a pattern custom and specialty saws.

-- Total control of stock removal. Tooth configuration, wheel lift off and grinding depth and speed.

-- Totally encolsed, flood cooled (15 GPM).

-- True circular feed, feed fingers travels in the same radius as the saw so it will not slide up or down the tooth as it indexes.

-- No nee to adjust the faceplate for saw thickness. Simply enter the tooth thickness and the machine automatically calculates the correct offsets.

-- Grinding wheel motor automatically reverses direction for right and left hand teeth.

-- Specifications:

-- Saw diameter: 6" to 36" (150 mm to 915 mm).

-- Saw Eye diameter: 5/8' to 9 5/8".

-- Maximum tooth width 0.300".

-- Maximum carbide length: 9/16".

-- Plate thickness: 0.035" to 0.180".

-- Hook angle range: -20 to +40.

-- Back angle range: 5 to 20.

-- Top Bevel Angle Range: 0 to 45.

-- Face Bevel Angle Range 0 to 15.

-- Grinding wheel diameter: 6".

-- Grinding wheel speed: 7158 SPFM @ 6" diameter.

-- Motor 1 1/2 HP.

-- Poly-V-Belt Drive.

-- Air requirement: 80 PSI.

-- Overall dimensionx: 73" X 81" X 44"
