1998 BARBERAN 4' FINISH LINE

1998 BARBERAN 4' FINISH LINE FLAT PANEL FINISHING LINE [FS-010537] in United States

Location:
United States
Price:
$79,500 USD
Manufacturer:
Barberan
Model:
4' FINISH LINE

Specifications

Condition:
used
Year:
1998
Recnum:
FS-010537
Comments:
An older but good condition, wet-on-wet Roll Coat Line With Sander that can be used as an add-on to a Line or all by itself!
Machtype:
FLAT PANEL FINISHING LINE
Condition info:
(5-7) Cleaned and checked [6]
Current status:
Active
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
225000

Description

BARBERAN - Flat Line Roll Coat Finishing System composed of:

-- Rotating Brush Panel Cleaner model LPV-1400 AB/RB: Feed system is a variable speed vacuum holddown belt; cleaning accomplished in (2) stages, 1st with Cleaning Brush followed by spinning air blow off nozzles with dust extraction covers in both stations.

-- Conveyor model BLD-1-AV-1600: (2) Sections and can be assembled together into a 10' section or could be used individually as needed; (1) drive motor for both, so if used individually, a drive would be necessary for one of the sections.

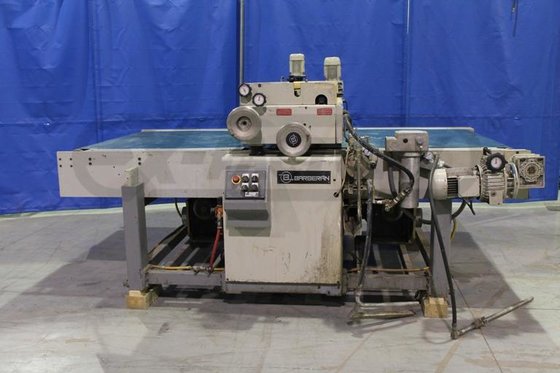

-- BARBERAN BRB 1400-E Precision Roll Coater with: Vacuum holddown antistatic PVC belt, (2) vacuum blowers, solvent resistant; (1) rubber application roll with chemical resistant covering dia. of approx 9-1/2", 1 HP variable speed motor.

-- (1) Chromed steel dosing roll with a dia. of approx. 6-7/8", fully reversible dosing roll for thickness control of applied product; speed adjustment made via independent inverters with digital readout on the control panel.

-- Double-membrane lacquer supply pump and fluid heater; lifting & lowering of the application head is achieved through a hand wheel adjustment with readout; Doctor blade's on both application & dosing rollers; Explosion proof wiring, application roller w/safty guards.

-- BARBERAN BRB 1400-E Precision Roll Coater with: Powered roll transport system and chromed support roll directly below the application roller to insure accurate coating thickness.

-- (1) Rubber application roll with chemical resistant covering dia. of approx 9-1/2", 1 HP variable speed motor; (1) Chromed steel dosing roll with a dia. of approx. 6-7/8", fully reversible dosing roll for thickness control of applied product.

-- Speed adjustment made via independent inverters with digital readout on the control panel.

-- Double-membrane lacquer supply pump and fluid heater; lifting & lowering of the application head is achieved through a hand wheel adjustment with readout; Doctor blades on both application & dosing rollers; Explosion proof wiring, application roller w/safty guard.NIPUER Wide Belt Sander:

-- 2-Head, 53" wide working width for Sealer sanding, Lacquer Sanding; or Denibbing sanding with (1) 16" dia., 30 durometer contact sanding roll in the 1st Sanding Station, and (1) Air-form 3" wide platen in the 2nd Sanding Station.

-- Each sanding head is adjusted independently to compensate for abrasive belt thickness and roll wear; mechanical digital readout for the positioning of sanding head is provided for each sanding head.

-- Fixed height conveyor at 35", vacuum holddown conveyor system with variable feed speed through mechanical adjustment.

-- Motor load meters are provided for each Sanding Station; motorized Panel Cleaning Brush at the outfeed is included.

-- No Central Cabinet since each machine has the controls built-in.
