1973 SCHIESS FRORIEP FB180 BORING
Location:
Switzerland
Price:
$629,748 USD
Manufacturer:
Schiess boring mills
Model:
FB180

Specifications

Condition:
used
Year:
1973
Recnum:
VQ-010009
Comments:
A Machine like this doesn't come on the market often; we can handle all the logistics and have this Boring Mill delivered right to your door!
Machtype:
BORING MILL - CNC (HORIZONTAL)
Condition info:
(6-8) Very good condition [6]
Current status:
Active
Elect./voltage:
380/415 V, 50 Cy, 3 Ph.
Appr. repl. cost:
2.25e+006

Description

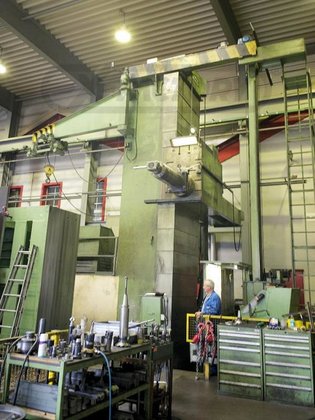

180 mm SCHIESS FRORIEP CNC HORIZONTAL BORING MILL FLOOR TYPE.

-- Specifications: X-axis travel 551-3/16", Y-axis travel 216-17/32, ram dia. 13-25/64", W-axis ram travel 31-1/2", Z-axis spindle stroke 55-1/8".

-- Features: Spindle dia. 7-3/32", spindle speed stepless 2,200 RPM, spindle feed 11/-7/64"/Min, spindle taper ISO 60, 99 HP spindle motor.

-- Includes: Milling spindle dia. 8-21/32", milling spindle flange dia.11-27/64", headstock width guide to the stand 55-1/8".

-- Equipped with: HEIDENHAIN "415" CNC control and a 135 HP main motor.

-- We can handle all the logistics and have this Boring Mill delivered right to your door.
