2011 BLACK BROTHERS LAMINATING AUTOMATIC

2011 BLACK BROTHERS LAMINATING AUTOMATIC LAMINATING SYSTEM [LA-011055] in Canada

Location:
Canada
Price:
No price
Manufacturer:
Model:
LAMINATING

Specifications

Condition:
used
Year:
2011
Recnum:
LA-011055
Comments:
56" Capacity BLACK BROTHERS Laminating Line!
Machtype:
AUTOMATIC LAMINATING SYSTEM
Condition info:
(7-9) Excellent condition [9]
Current status:
Active
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
500000

Description

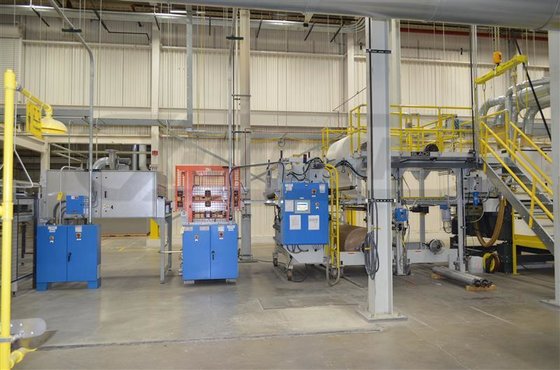

BLACK BROTHERS DOUBLE SIDED LAMINATING LINE Supplied with CRANE- DEMAG 3-TON CRANE, complete with rails and legs, includes boom bar and straps.

-- BLACK BROTHERS Infeed conveyor (with panel warmers), (2) unwind stations to hold laminating material, set on a mezzanine structure. includes stairs.

-- BLACK BROTHERS CONTROLS – SIEMENS (simatic panel) 10� touch panel - with line of speed control, master speed control of BBROS "775" Adhesive Spreader, conveyor, panel express and oven line speeds also emergency stop push bottom.BLACK BROTHERS (775)

-- Top & bottom glue spreader, 56� width capacity, 0 to 4 inch opening, auto elevator motorized adjustment of thickness gap setting with pre-sets, air lift to raise top rolls 3� during line stoppage.

-- Variable speed drive; AC inverter type with reverse lock-out, 12 - 35 FPM, 2HP drive, e-stop cables, pivoting in-feed table with interlock switch.

-- Operating hand-wheels & electrical controls on left, double diaphragm pump mounted on left, 1� ports and neoprene diaphragms for water based adhesives, liquid level control – fiber optic type for PVA or similar adhesives, glass type fiber optic liquid level for bottom reservoir, feed lines to both ends of top and bottom reservoirs.

-- Automatic roll cleaning arrangement, non-stick coating or guards, tables, and end seal backing plates, centralized lubrication system , includes all greased parts on the machine gears, sprockets & bearing, all grease zerks to 2 - 4 central manifolds. BLACK BROTHERS (Panel Express):

-- Heated Rollers – 56� width capacity, adjustments for product thickness and pressure is set with motor and air lift.

-- Equipped with: (3) Top and (3) lower rollers as well as (2) heaters on top and (2) heaters on bottom.PROCESS THERMA DYNAMICS FBCO Feed through oven 56" wide with stainless steel belt, 1 HP feed motor, 84" tunnel length, has (4) 15" x 53" heating elements with total of 126 full load Amps, 102,440 TTL heater watts.
