2002 COSTA KA CCT 1350
Location:
United States
Price:
$56,500 USD
Manufacturer:
Costa
Model:
KA CCT 1350
Elect./Voltage:
480 V, 60 Cy, 3 Ph.

Specifications

Condition:
used
Year:
2002
Recnum:
SX-012105
Comments:

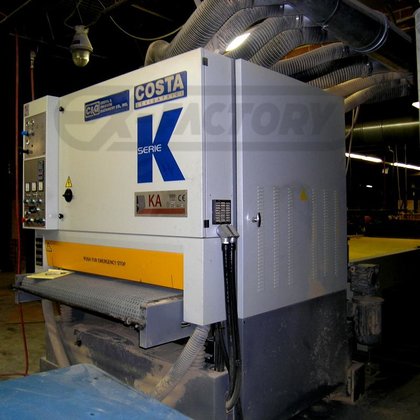

A really well equipped COSTA "KA CCT" 3+1 Head Wide Belt Sander!
Machtype:
WIDE BELT (3-HEAD 53")
Condition info:
(6-8) Very good condition [6]
Current status:
Active
Elect./voltage:
480 V, 60 Cy, 3 Ph.
Appr. repl. cost:
195000

Description

COSTA KA CCT 1350 3-Head Sander: 52" width cap. and constant pass line conveyor height;Excellent Veneer and Solid wood sander with (2) Contact rolls and (1) Segmented platen.Head Configuration:

-- 1st Head: Rubber covered contact roll, 9-7/8" dia., 35 HP motor.

-- 2nd Head: Rubber covered contact roll, 9-7/8" dia. approx. 40 shore covering, 30 HP motor;

-- 3rd Head: Segmented finishing platen, electronically controlled narrow segments conform to panel width and length for thin veneer sanding, 25 HP motor.

-- Sanding Belt Info: 53" x 103" abrasive belts, air blast abrasive belt cleaning, pneumatic belt tensioning with electronic tracking.

-- At Outfeed: Rotary panel cleaning brush, 7" dia. with 2 HP motor.Other Specificatons:

-- Equipped with: PLC processor controls.

-- Feed System & Conveyor Bed: Variable feed speed conveyor with inverter control 16 - 82 FPM.

-- Floating bed assembly for veneer sanding, vacuum conveyor bed assembly; Infeed & outfeed spring loaded hold down shoes on all heads;

-- Features & Complete with: Anti-static bar and rotary air jet abrasive belt blowers; Powered raise & lower conveyor bed with LED readout; motor load meters on all sanding head motors.

-- Actual Model is COSTA KA CCT 1350 3-Head sander

-- Dimensions: 90" X W 80" X H 96"; weight: approx 10,000 Lbs.
