Location:
Bensenville, IL
Manufacturer:
Chicago Blower

Specifications

Condition:
used
Stock number:
10211079
Cfm:
76515

Description

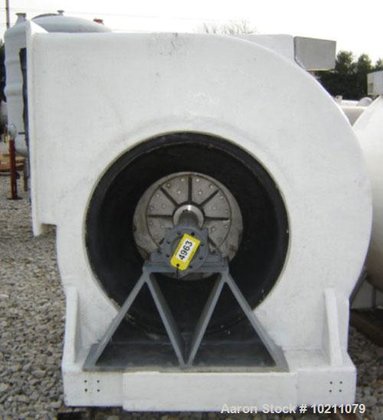

10211079 Used-76515 CFM at 20.7 inches S. P. Chicago Blower Fan Model CB 3650 DWDI. Stainless steel wheel and shaft in fiberglass housing. Chicago Blower Design 1910, Size 3612-3650 stainless steel wheel and shaft fan in fiberglass housing. No motor. Arrangement 3, Class 5 design. Fan rotors are stainless steel. Shaft is UHB119 steel. Center diameter is 4.72" and bearing diameter is 3.1". Performance curve on file. HP at above operating point would be 304. RPM is 2000. No motor included. Airfoil design - 1910A DW Model CV 3650 DI at 110% width, double inlet. Top horizontal discharge.
