Location:
Bensenville, IL
Model:
DSNX 7050

Specifications

Condition:
used
Serial number:
A91115363
Stock number:
45665001
Pitch:
10-1/2"
Dia (in):
29
Len (in):
92
Feed pipe:
Standard
Bowl speed:
2630
Hardfacing:
Sinter Tungsten Tiles
Liquid pans:
Moon
Backdrive hp:
37kW
Solids ports:
Single Row Lined
Base material:
Carbon steel
Bowl material:
2205 SS
Main drive hp:
200 kW
Motor voltage:
380 Volt
Backdrive type:
AC
Overal dimensions:
210"L x 72"W x 60"T, back drive 48"L x 37"W x 33"T, misc skid 48"L x 48"W x 32"T, panel 67"L x 48"W x 94"T, panel 48"L x 48"W x 96"T, panel 48"L x 48"W x 94"T, main motor 62"L x 52"W x 55"T, guard 102"L x 12"W x 34"T, yellow guard 108"L x 20"W x 52"T, power pack 48"L x 48"W x 59"T, misc skid 48"L x 40"W x 34"T
Subcategory:
Centrifuges
Subcategory 2:
Decanter centrifuges

Description

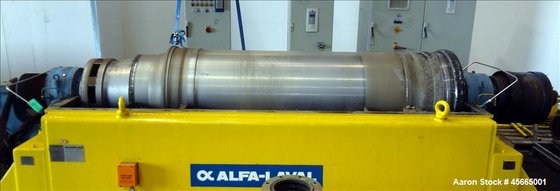

45665001 Used- Alfa Laval/Sharples DSNX 7050 Super-D-Canter Centrifuge (dry solids design). 316/317 Stainless steel construction (product contact areas). Maximum bowl speed 2630 rpm. 360 degree solids discharge ports with sintered tungsten carbide wear inserts, moon liquid plate dams, bowl silence rings, 95:1 ratio gearbox, base, casing, lubrication system. Includes 200KW, 690/3/50/1486 rpm main motor, 37 KW, 690/3/50/1480 rpm back drive, feed pipe, vibration isolators, vibration switch, safety guards, and control panels. Serial# A91/115363, built 1991.
