- Arrow Tank & Engineering Sieve Tray Column, 304L Stainless Steel, Vertical in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Arrow
Model:
Stripper Column

Specifications

Condition:
used
Stock number:
43659018
Type:
Tray
Dia (in):
24
Material:
304L SS
Height(in):
432
Category:
Columns

Description

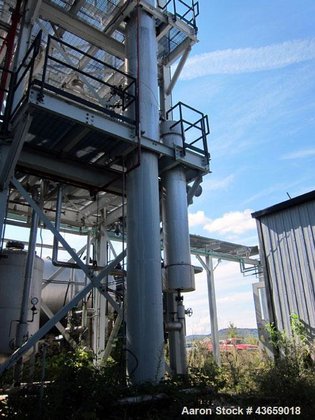

43659018 Used- Arrow Tank & Engineering Sieve Tray Column, 304L Stainless Steel, Vertical. Internal rated 50 psi & Full Vacuum at -20 to 300 degrees F. Approximate 24" diameter x 36 straight side, overall height approximate 52. Top openings 4", side (14) 1", 1-1/2", (4) 2", (5) 3", 16" bottom manway with cover. 2" Center bottom outlet. Approximate capacities 8.81 gallons per minute, steam 1490# an hour. Mounted on a bottom carbon steel support skirt 15 high with mounting ring.
