Location:
Bensenville, IL
Manufacturer:
Barr Murphy
Model:
9X9

Specifications

Condition:
used
Stock number:
73728
Subcategory:
Air dryers

Description

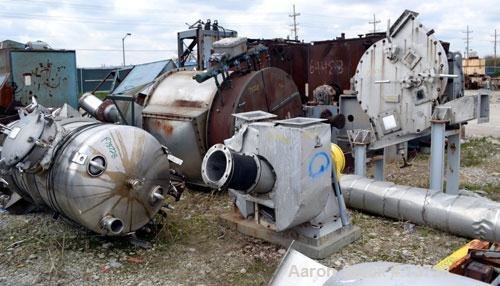

73728 Used- Barr & Murphy Ring Dryer, 304 Stainless Steel. Approximate capacity 2,200 pounds an hour of product with 10% moisture content down to 0.1% moisture content at 265 degrees F. inlet air temperature, 150 degrees F. exhaust air temperature. Unit consists of: (1) Steam coil chamber with aluminum fins, approximate 535 pounds an hour steam consumption, (1) Barr & Murphy manifold classifier with deflector blades, (1) 6" diameter x 88" long screw conveyor, driven by a 2hp, 3/60/460 volt, 1160 rpm motor thru a Dodge reducer, ratio 24.71 to 1, (1) Disintegrator, approximate 30 diameter rotor with (14) " thick fixed blades, driven by a 15hp, 3/60/230/460 volt, 1760 rpm motor, (1) Mid-States Contracting pressure tank/filter, approximate 36" diameter, rated 50 psi at -20 to 150 degrees F., has approximate (12) 5" diameter x 36" long bags, (1) Mac pulse jet dust collector, model 95-AVRT-06-004, no bags or cages. Includes miscellaneous piping, and a control panel.
