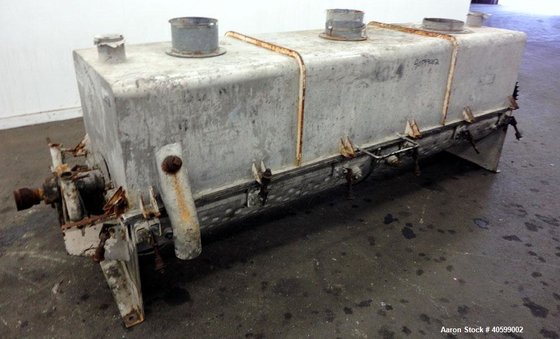

- Reitz/Bepex Torus Disc Dryer, Model TDJS-26-8, 304 Stainless Steel in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Rietz Bepex
Model:
TDJS-26-8

Specifications

Condition:
used
Stock number:
40599002
Sqft:
24
Len (in):
1
Material:
304 Stainless Steel
Width (in):
102
Category:
Disc dryers

Description

40599002 Used- Reitz/Bepex Torus Disc Dryer, Model TDJS-26-8, 304 Stainless Steel. Approximately 17 cubic feet working capacity. 24'' Diameter x 102'' long x 4'' spaced cored screw, rated 80 psi at 200 degrees F., approximate 20 rpm screw speed. Driven by a 5 hp, 3/60/208-230/460 volt, 1725 rpm motor thru a reducer, approximate ratio 32.06 to 1. Bottom dimple jacketed trough 26'' wide x 102-1/2'' long x 13'' deep rated 80 psi at 200 degrees F. Full top hinged cover, top feed, 6'' end bottom outlet.
