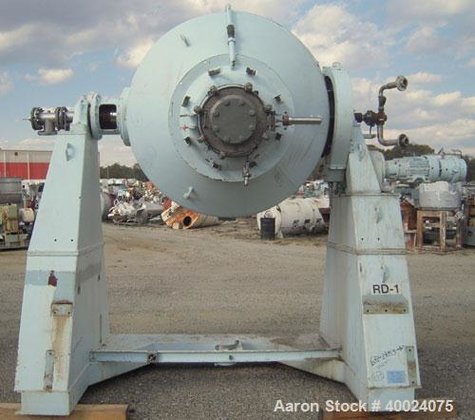

- De Dietrich Glass Lined Double Cone Dryer, 70 Cubic Feet Working Capacity (107 Total), Model SR3030, 3009 Blue Glass in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Dedietrich
Model:
SR3030

Specifications

Condition:
used
Stock number:
40024075
Psi:
40
Cubft:
70
Material:
3009 Glass

Description

40024075 Used- De Dietrich Glass Lined Double Cone Dryer, 70 Cubic Feet Working Capacity (107 Total), Model SR3030, 3009 Blue Glass. Internal rated 40 PSI and Full Vacuum at 350 Degrees F, jacket rated 90 PSI and Full Vacuum at 350 Degrees F. 18'' charge with cover, 8'' outlet with valve. Driven by a 7.5 HP, 3/60/230/460 Volt, 1750 RPM motor with brake. Mounted on stands. Includes (1) Used Rosenmund Apovac Vacuum System consisting of: (1) Sulker Burckhardt hastelloy C22 pump, model PMZU2510H8, 15 HP XP motor; (1) Kontro pump, model 4, 2 HP motor; (1) Industrial Piping 105 gallon hastelloy C276 pressure tank; 35 square feet hastelloy C276 liquid ring cooler, 19 square feet hastelloy C276 suction condenser, 37 square feet hastelloy C276 exhaust condenser and misc piping and valves. Frame mounted.
