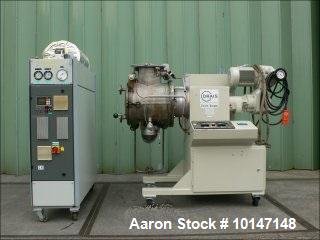

-Draiswerke Turbulent Dryer, Model T-50 FM-1. Built 1991, Stainless steel (1.4541) on product contact parts in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Draiswerke
Model:
T-50 FM-1

Specifications

Condition:
used
Stock number:
10147148
Cubft:
1.76
Dia (in):
15.5

Description

10147148 Used-Draiswerke Turbulent Dryer, Model T-50 FM-1. Built 1991, Stainless steel (1.4541) on product contact parts. Capacity 1.76 cubic feet (50 litre). Trough sizes diameter "15.5"x17.7 (395x450 mm), Inlet diameter 9.6" + 1.6" (245 mm + 40 mm), Outlet diameter 3.1" (80mm). Working pressure vacuum, Jacket 1.7 gallon (6.5 litre). With GWK type Teco oil heater. Working pressure 174 PSI (12 bar), Test pressure 245 PSI (16.9 bar), Maximum temperature 302°F (150°C). 5.3HP (4 kW), 380V, 50Hz motor, with variable speed drive. Speed mixing shaft ±48-291 Rpm. With lump breaker driven by a 5.3 HP (4 kW), 380/660V, 50Hz motor. Mounted on frame with wheels, with switchgear.
