- E. Bachiller Plow Mixer Dryer, 10.6 Cubic Feet (300 Liter), Model MMT 300, 304 Stainless Steel in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
E. Bachiller
Model:
MMT 300

Specifications

Condition:
used
Stock number:
45869001
Cubft:
10.6
Mounted:
Carbon Steel Frame
Dia (in):
26
Len (in):
MMT300
Material:
304 SS
Year built:
1998
Outlet size:
8" x 6.5"
Inspection doors:
2
Working capacity:
10.6
Pressure - jacket:
29
Internal temperature:
212 F
Temperature - jacket:
275 F
Material of construction:
304 Stainless Steel
Number of chopper motors:
1

Description

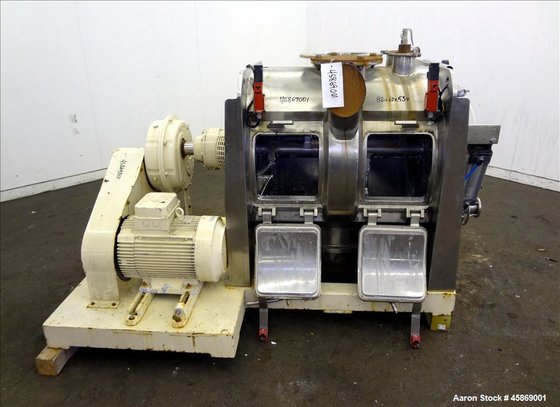

45869001 Used- E. Bachiller Plow Mixer Dryer, 10.6 Cubic Feet (300 Liter), Model MMT 300, 304 Stainless Steel. Jacketed mixing chamber approximate 26" diameter x 33" long. Internal rated atmospheric at 212 degrees F. (100 C), stainless steel jacket rated 29 psi (2 bar) at 275 degrees F. (135 C). Approximate 3.5" diameter shaft with (2) bolt on plows, and (2) bolt on end scrappers. Driven by a 11/12.6 kw, 3/50/60/380-420/440-480 volt, 1460/1760 rpm motor with reducer. Includes a side entering chopper with blades driven by an approximate 5hp motor. Openings top 10", (2) 4", 5.5", (2) 3". (2) Side access doors, 8" x 6.5" center bottom outlet with an air operated door. Mounted on a carbon steel base. Serial# 5932/1, built 1998.
