- Goslin-Birmingham Rotary Vacuum Dryer, Approximate 12 Cubic Feet, 316 Stainless Steel, Horizontal in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Birmingham

Specifications

Condition:
used
Stock number:
64183
Cubft:
12
Dia (in):
26
Len (in):
48
Material:
316 Stainless Steel

Description

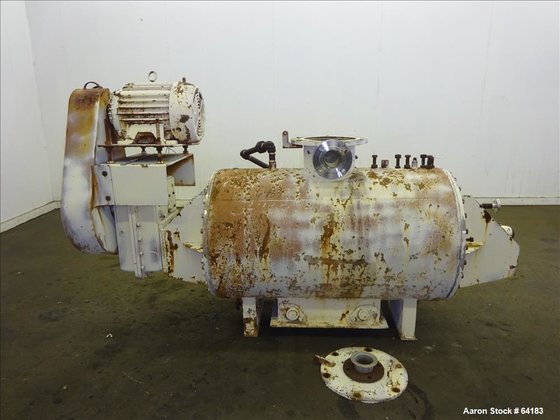

64183 Used- Goslin-Birmingham Rotary Vacuum Dryer, Approximate 12 Cubic Feet, 316 Stainless Steel, Horizontal. Approximate 26" diameter x 48" long carbon steel jacketed chamber, (2) flat bolt on ends. Internal rated 65 psi at 300 degrees F. jacket rated 50 psi at 300 degrees F. Single ribbon type agitator. Openings top 10", 3", (2) 1". Center bottom outlet. Driven by a 5hp, 3/60/220/440 volt, 860 rpm motor thru a Falk gearbox model 2307J25, ratio 25.03 to 1. Mounted on saddles. Serial# 263.65.1, National Board# 794.
