- Meilibex Rotary Vacuum Dryer, 24 Cubic Feet, Hastelloy C4 Product Contact Parts in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Fritz Meili

Specifications

Condition:
used
Stock number:
63980
Cubft:
24
Dia (in):
32
Len (in):
49
Material:
HastC4

Description

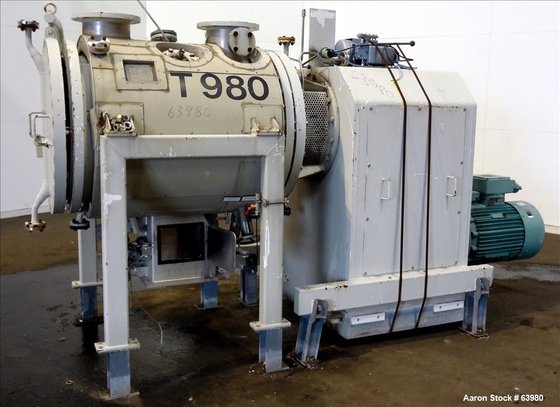

63980 Used- Meilibex Rotary Vacuum Dryer, 24 Cubic Feet, Hastelloy C4 Product Contact Parts. 32" Diameter x 49" straight side. 11" diameter shaft with (8) 6" wide x 2" thick welded posts. Top openings: (2) 10", (1) 5" sight glass, 6" center bottom outlet. Internal rated -1/1 Bar (-14.5/+14.5psi) at 200 degrees C, Jacket rated 90 psi (6 bar) 392 degrees F (200 degrees C). Driven by a 37 kW, 380-660 volt, 985 rpm motor. Includes a dust filter 24" diameter x 36" straight side x 13" cone slant and 10" outlet, control panel and barrel filling unit. Serial# 4806-1, built 1991.
