- Lodige Druvatherm Batch Type Vacuum Paddle Dryer, Type VTA 1200, 316 Stainless Steel in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Lodige
Model:
VTA 1200

Specifications

Condition:
used
Stock number:
44438001
Cubft:
28.3
Dia (in):
37.4
Len (in):
66.9
Material:
316SS

Description

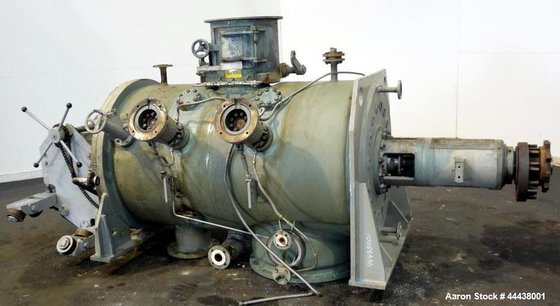

44438001 Used- Lodige Druvatherm Batch Type Vacuum Paddle Dryer, Type VTA 1200, 316 Stainless Steel. Approximate 28.3 Cubic feet (800 Liter) working capacity (42.3 total). Carbon steel jacketed chamber approximately 950mm (37.4") diameter x 1700mm (66.9") long. (1) End removable for telescoping shaft. Internal rated vacuum (-1) at 170 degrees C (338 F), jacket rated 7 bar (101 psi) at 170 degrees C (338 F). Shaft with fixed plows. (2) Side entering choppers with blades, 6.5-9 kW (8.7-12 hp) motors. Openings top 250mm (9.8") diameter charge port, 700mm (27.5") with a 2.4 square meter filter, rated vacuum (-1) at 170 degrees C (338 F), jacket rated 7 bar (101 psi) at 170 degrees C (338 F). 200mm (7.8") Center bottom outlet with a plug valve. Mixer driven by a 75kw (100hp), 3/50/380 volt, 1480 rpm motor thru a reducer, ratio 18.23 to 1. Includes a control panel, and miscellaneous framework.
