- Processall Rotary Vacuum Dryer Plow Mixer, Model 1200, 304 Stainless Steel in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Processall
Model:
1200HP

Specifications

Condition:
used
Stock number:
46075100
Cubft:
42
Mounted:
Base Mounted
Dia (in):
36
Drive hp:
60
Len (in):
96
Material:
304SS
Drive rpm:
1780
Drive cycle:
60
Drive phase:
3
Outlet size:
8"
Drive voltage:
208-230/460 Volt
Reducer ratio:
13.95 to 1
Working capacity:
1,200 Liters
Internal pressure:
100 psi
Overal dimensions:
137"L x 56"W x 64"T
Pressure - jacket:
30 psi
Internal temperature:
350 degrees F
Temperature - jacket:
350 degrees F
Number of top openings:
(2) 2" NPT, (1) 12", (1) 18" Manway with cover, (1) 19-1/2".
Material of construction:
304 Stainless Steel

Description

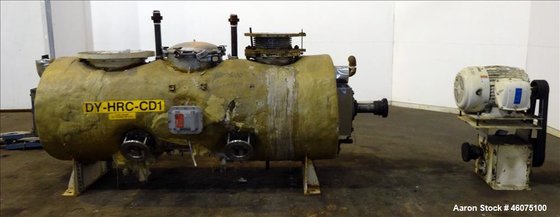

46075100 Used- Processall Rotary Vacuum Dryer Plow Mixer, Model 1200, 304 Stainless Steel. Approximate 1200 liter capacity (42 cubic feet). Jacketed chamber approximate 36" diameter x 96" long. Internal rated 100 psi at 350 degrees F, jacket rated 30 psi at 350 degrees F. (7) Bolt on plow blades, provision for (2) side entering choppers. Driven by a 60hp, 3/60/230/460 volt, 1780 rpm XP motor a Falk reducer, ratio 13.95 to 1, output 83 rpm. Includes a top mounted filter. Serial# 123. Certified by Cincinnati Butchers Supply, National Board# 0092, serial# PV-09-93, built 1993.
