: Rotary vacuum dryer, 316 stainless s teel. 4000 liter, 141 cubic feet in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
No

Specifications

Condition:
used
Stock number:
28896
Cubft:
141
Dia (in):
55
Len (in):
123
Material:
316 Stainless Steel

Description

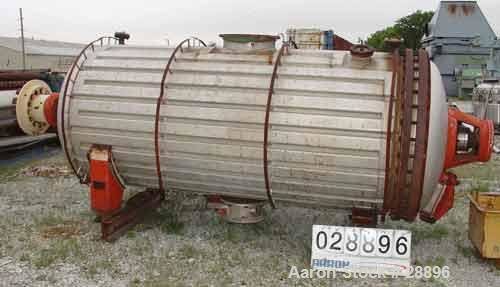

28896 USED: Rotary vacuum dryer, 316 stainless s teel. 4000 liter, 141 cubic feet. 55" diameter x 123" straight side. Stainless steel flat channel jacket rated 75 psi, internal 56 psi and full vacuum. Dished heads, 1 end removable. Cored shaft 25" diameter with scraper type paddle agitator. (2) 12" x 15" end clean out doors. 19" top center inlet with jacketed transition pipe. Approximate 14" cbo with hand operated valve. Mechanical seals. Direct driven 2 speed, 14/9.5 hp, 3/50/550V/1470 rpm thru parallel shaft gearbox.
