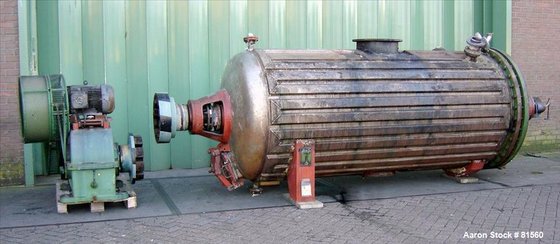

: Vevey rotary vacuum dryer, 141 cubic feet (4000 liter) in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Vevey

Specifications

Condition:
used
Stock number:
81560
Cubft:
141
Dia (in):
52
Len (in):
128
Material:
Stainless Steel

Description

81560 USED: Vevey rotary vacuum dryer, 141 cubic feet (4000 liter). Material of construction is stainless steel on product contact parts. 52" diameter x 128" straight side (1380mm diameter x 3250mm straight side). Dished, one end removable. Inside rated for 30 psi (2 bar) and full vacuum (-1) at 311 degrees F (155 degrees C). Cored agitator with paddles rated for 75 psi (5 bar) and full vacuum. Flat channel jacket rated for 75 psi (5 bar) and full vacuum (-1). (2) 12" x 15" (310mm x 385mm) end clean out doors. Mechanical seal. Complete with gearbox, motor, receiving tank and (2) vacuum pumps.
