- Buss Rotary Vacuum Dryer, 158 Cubic Feet (4500 Liter), 316 Stainless Steel in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Buss

Specifications

Condition:
used
Stock number:
42424
Cubft:
158
Dia (in):
55
Len (in):
126
Material:
316 Stainless Steel

Description

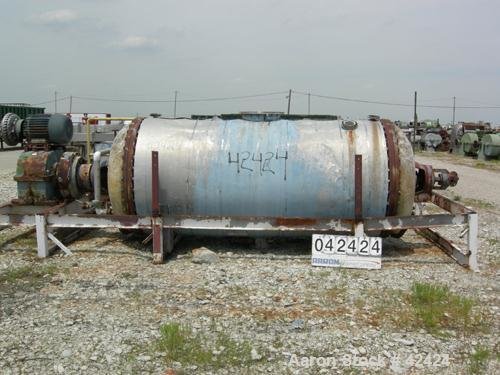

42424 Used- Buss Rotary Vacuum Dryer, 158 Cubic Feet (4500 Liter), 316 Stainless Steel. 55" Diameter x 126" straight side. Stainless steel flat channel jacket, insulated, rated 75 psi. Both dished heads removable. Internal 56 psi/fv. Cored shaft 25" diameter, 75 psi with scraper type paddle agitator. (2) 12" x 15" End cleanout doors. (1) 19" Top center flange. Approximate 14" cbo with hand operated valve. Mechanical seals. Direct driven 25 hp XP, 230-460V/1150 rpm thru 237.5:1 ratio gearbox. Shaft speed approximately 5 rpm. Unitized in steel frame.
