- Rogers Food Processing Equipment Spray Dryer, Stainless Steel. Set up for 12 inserts side nozzle atomization, nozzles available in Bensenville, IL

Location:
Bensenville, IL
Manufacturer:
Rogers
Model:
Spray Dryer

Specifications

Condition:
used
Stock number:
44268044
Type:
Side Nozzle Atomization
Dia (in):
276
Material:
Stainless Steel
Height(in):
456
Category:
Spray dryers

Description

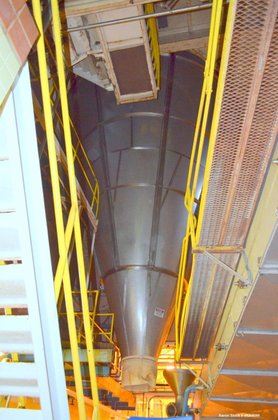

44268044 Used- Rogers Food Processing Equipment Spray Dryer, Stainless Steel. Set up for 12 inserts side nozzle atomization, nozzles available. Last used in whey drying. Approximate 5000 pounds an hour, 50% down to 12% moisture evaporation rate. Approximate 23 foot diameter, X 10 foot on the straight side X 28 foot on the cone section. The overall height of the dryer is 38 feet not including the ducting from the top of the chamber. Gas heated with cyclones, dust collector, (2) powder bins, heat exchangers. 15.75 million BTU burner, Built in 1974. IAP Exhaust Fan, Model 445 "B" EHD Arr 1, Serial # 911217, 51260 CFM, 20O HP, 1785 RPM Motor. Intake Fan, 40 HP 1765 RPM Motor. Zephyr Burner, 16,000,000 BTU. Includes: air filter assembly, intake air fan, gas train, 2 cyclones, air lock valves, center tube, exhaust fan, heat exchanger, associated duct work.
