- Spray Tower Dryer, Originally designed for 12,500 pounds / hour of water evaporation in Bensenville, IL, USA

Location:
Bensenville, IL, USA
Price:
No price
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
45134022
Type:
Tower
Category:
Spray dryers

Description

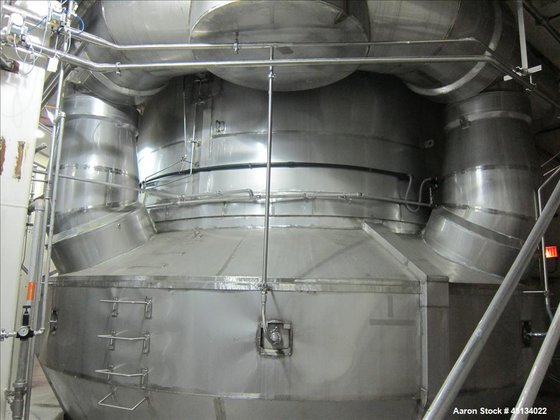

45134022 Used- Spray Tower Dryer, Originally designed for 12,500 pounds / hour of water evaporation. The dryer capacity was increased to 15,000 pounds / hour at 65,000 SCFM of air flow. The Dryer is constructed of 316 L Stainless steel. The dryer is a Standard Tall Form Dryer equipped with an integral static Fluid Bed Dryer and external Vibratory Fluid Bed Cooler. Both beds have heaters and the VFB also had a Cooler. The Dryer was equiped with fines return and agglomeration capabilities as an option. It is currently configured without Fines return. Primary cyclone followed by a Dust Collector. Both the burners for the fiber and spray dryer were max 30 MMBTU/hour. The Kst of Soy Isolate is 119, so the dryer, cyclone and dust collector all were equipped with explosion panels. The system is equipped with a CIP system with the exception of the dust collector. The feed system was designed for 33 GPM with two high pressure pumps capable of 10,000 psi feed.
