Location:
Bensenville, IL
Manufacturer:
N/A

Specifications

Condition:
used
Stock number:
10151206
Sqft:
40

Description

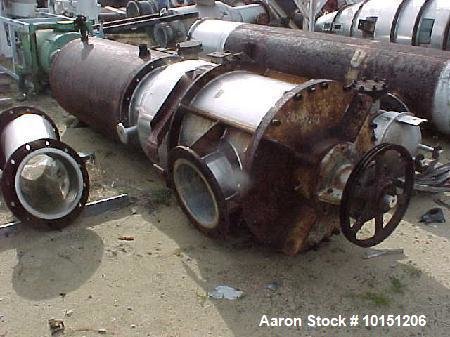

10151206 Used- Vertical Wiped Film Evaporator. Approximately 40 square foot area. Main chamber 2' diameter x approximately 5.5' straight height with bolted cone bottom. Steel jacket. V-belt drive, takes 7-1/2 hp motor. 30" Diameter x 4' high stainless steel pot welded to top, with bolted flat cover. Includes approximately 400 square foot vertical condenser rated full vacuum on T-316 stainless steel and 60 psi tube side, multi-pass, with steel heads. Polished finish internally. Looks like a Rodney-Hunt/Chemetron. Top vapor section 36" diameter x 48" high plus 12" transition section to jacketed area. 28" Shell diameter x 60" high plus 18" deep cone bottom. 4" Outlet in center bottom.
