Location:
Bensenville, IL
Manufacturer:
Teledyne extruders
Model:
5''

Specifications

Condition:
used
Stock number:
41694003
Hp:
7.5
Dia (in):
5
Len (in):
32

Description

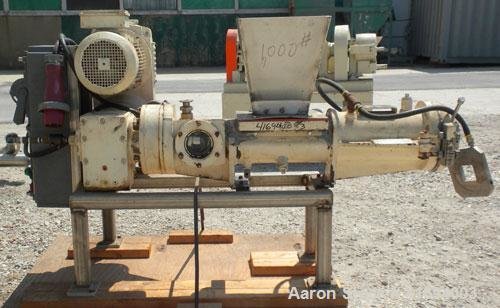

41694003 Used- Teledyne Readco Continuous Crosshead Extruder, model 5, 304 stainless steel. 5 diameter screw segments, approximately 32 long overall length. Sections consist of: (1) 8 front secondary feed section with sight glass; (1) 12 middle main feed section with hopper, carbon steel jacket; (1) 12 end carbon steel jacket barrel section. Jacket rated 150 psi at 650 deg F. Driven by a 7-1/2 hp Sew variable speed motor, ratio 50.55 to 1, minimum/maximum rpm 12/71. Mounted on a stainless steel frame. Last used with a Teledyne Readco 5 continuous twin screw processor.
