Location:
Bensenville, IL
Manufacturer:
Hoechst
Model:
DS2400-20

Specifications

Condition:
used
Stock number:
46074001
Sqft:
50359
Meter:
4.7
Subcategory:
Filters

Description

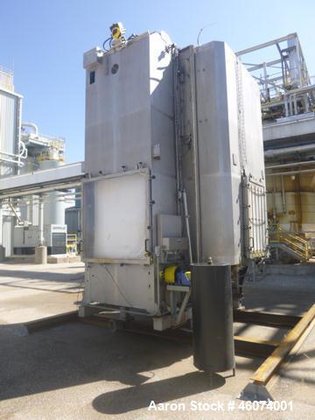

46074001 Used- Hoesch Larox DS Series Horizontal Plate Type Automatic Pressure Filter, Type DS2400-20. Plate format 1200mm x 2400mm, 4.7 Square meter filter surface area (160 m3 total), (20) Polypropylene chambers, 50mm depth, filling volume 2.1 cubic meters, maximum operating & filtering pressure 16 bar, maximum hydraulic pressure 420/250 bar. Filter belt material 2636 PP, 1260mm wide x 94-130 meter, pneumatic belt tensioning 2-6 bar, electric roller actuator. Food grade quality standard design, totally enclosed 316 stainless steel housing, double sided filtration in all chambers. Unit OAD assembled approximate 188" long x 145" wide x 262" tall, assembled weight 80,000#. Includes a GL hydraulic power pack, 50hp, 3/60/208-230/460 volt, 1770 rpm, (2) 1.26m x 139.75m filter belts, (1) spare frame, (10) polypropylene chambers, (1) spare cylinder, miscellaneous rollers, motors, and blades. Serial# 42005, order# 65-5206, built 2001. Unit currently disassembled.
