Location:
Bensenville, IL
Manufacturer:
Baker
Model:
ML-250

Specifications

Condition:
used
Stock number:
76967
Sqmt:
0.25
Material:
Hastelloy C-22
Subcategory:
Filters
Subcategory 2:
Nutsche filters

Description

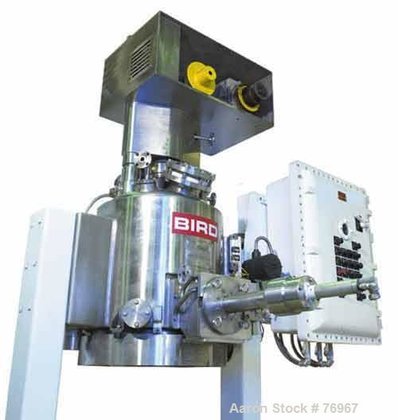

76967 Unused- Bird/Baker Process Filter Dryer, Model ML-250. Hastelloy C-22 product contact areas, (0.25) square meter. Vessel 24" diameter x 32" deep, rated 45/FV psi at 302 degree F, flat jacketed bolt-on bottom. Jacket rated 90 psi at 302 degree F. Approximate 23" diameter double elliptical bottom agitator blade, driven by an approximate 3 hp motor thru an SEW reducer, ratio 27.28:1, approximate 12" upstroke. Openings: top (2) 1/2", 2", 1", 1-1/2", 6" sightglass; 5-1/2" side bottom outlet, plug valve. XP control box. Unitized on a common frame.
