Location:
Bensenville, IL
Manufacturer:
Diessel

Specifications

Condition:
used
Stock number:
13140005
Sqft:
30
Material:
T316L stainless steel
Subcategory:
Filters
Subcategory 2:
Pressure leaf filters

Description

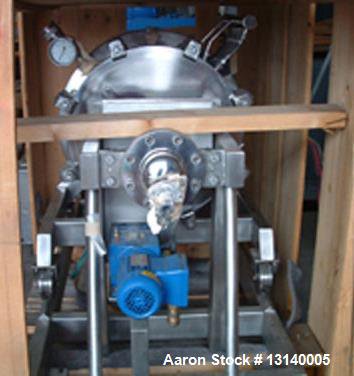

13140005 Used-Diessel GMBH Approximately 30 Square Foot Rotating Leaf Jacketed Pressure Vacuum Filter. Sanitary T316L stainless steel construction. Horizontal tank 21-1/2" ID x 12" deep, electropolished internally with clamps. ASME code stamped full vac/87 psi internal, 43 psi jacket @ 300 deg F. Stationary flat head with shaft mounted leaves, tank rolls back on stainless steel track to expose leaves. Has six (6) stainless steel leaves 21" diameter with 1-1/2" space between the leaves. Rotation of shaft mounted leaves is via chain and sprocket drive, sew Eurodrive with 0.8 kW motor, gear reducer with handwheel for varying the speeds. Fitted with seven (7) wash nozzles in tank for sluicing of the leaves. Can also be used for dry cake discharge. Built 1998 but not used.
