Location:
Bensenville, IL
Manufacturer:
Seitz Orion
Model:
Duobloc Drehfilter

Specifications

Condition:
used
Stock number:
46011001
Sqft:
86
Dia (in):
47.2
Len (in):
84
Year built:
1978
Filter area:
86
Frame material:
304 Stainless Steel
Overal dimensions:
124"L x 80"W x 72"T, vacuum pump skid 74"L x 60"W x 83"T, tank 90"L x 50"W x 90"T, control panel 48"L x 48"W x 18"T
Contact area material:
304 Stainless Steel
Subcategory:
Filters
Subcategory 2:
Rotary vacuum filters

Description

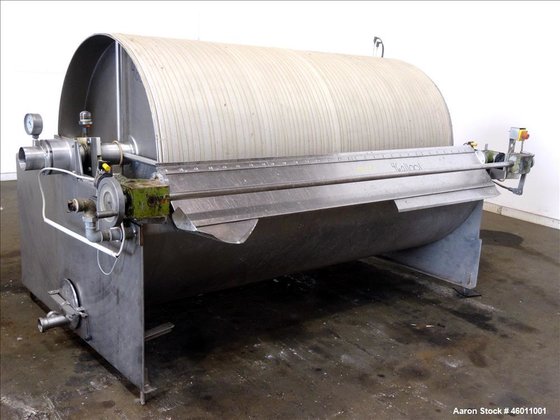

46011001 Used- Seitz Enzinger Noll Duobloc (Drehfilter) Rotary Drum Vacuum Filter, Approximate 86 Square Feet (8m^2), 304 Stainless Steel. Drum 47.2" (1200 mm) diameter x 84" face. Driven by approximate 0.18/0.75 kW variable speed gear motor, ratio 10 to 1. Manual knife scraper discharge, rake style agitator, driven by approximate .55 kW, 3/50/220/380 volt, 1380 rpm motor. Includes vacuum system consisting of (2) sihi vacuum pumps, model LPHE-40411, driven by 4 kW, 3/50/380 volt, 1430 rpm motors, (1) 304 stainless steel tank, approximate 70 gallons with Seitz-Werke pump, model SB-4. (1) 304 Stainless steel feed tank, approximate 275 gallon with agitator with (3) blade prop, control panel. Order# BV30963/00. Serial# 101 10 07491. Built 1978.
