Location:
Bensenville, IL
Manufacturer:
Ace
Model:
E132-2-36

Specifications

Condition:
used
Stock number:
44914001
Sqft:
1938
Material:
316ss

Description

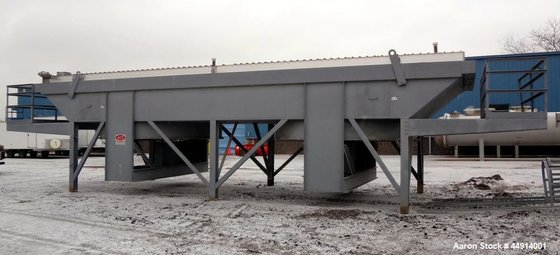

44914001 Unused- ACE Air Cooled Exchangers Air Cooled Gas Cooler / Fin Fan Heat Exchanger, 1,938 Bare Square Feet, 46,304 Total Square Feet, Model E132-2-36.(2) Service sides of horizontal sections with vertical air discharge. Service AC-1 Flow 62076 pounds an hour, fluid 0.65, temperature in 300 degrees F, inlet pressure 1150 psig, pressure drop 11.2 psi, duty, btu/hr 7501701, corrected MTD 63.5, bare tube rate 121.9, fouling 0.00200, bare square feet 969, total square feet 23,152. Service AC-2 Flow 62076 pounds an hour, fluid 0.65, temperature in 300 degrees F, inlet pressure 1150 psig, pressure drop 11.2 psi, duty, btu/hr 7501701, corrected MTD 63.5, bare tube rate 121.9, fouling 0.00200, bare square feet 969, total square feet 23,152. Construction AC-1 (1) Section (138) 0.75" x 16 BWG x 36 long SA213(SMLS316) stainless steel tubes, (4) rows, (2) passes, counter flow, design pressure 2840 psi at 350 degrees F, 6" inlet, 6" outlet, AC-2 (1) Section (138) 0.75" x 16 BWG x 36 long...
