Location:
Bensenville, IL

Specifications

Condition:
used
Stock number:
46075065
Sqft:
909
Tubemtl:
Incoloy 825
Shellmtl:
Incoloy 825
Year built:
1990
Shell pressure:
75 PSI
Square footage:
909
Shell temperature:
350 degrees F
National board no.:
6
Size of tube openings:
3/4"
Horizontal or vertical:
Horizontal
Number of tube openings:
232

Description

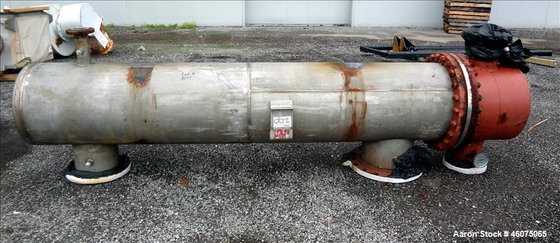

46075065 Used- J.F.D. Tube & Coil Products U Tube Shell & Tube Heat Exchanger, Approximate 909 Square Feet, Horizontal. SB-434-825 Incoloy 825 shell rated 75 psi at 350 degrees F, (232) 3/4" diameter x 120" long SB-163-825 Incoloy 825 tubes rated Full Vacuum & 125 psi 350 degrees F. Carbon steel head, SB-434-825 Incoloy 825 tubesheets. Openings shell 3", 12", 16", openings head (2) 8". Serial# 8923, National Board# 6, built 1990.
