Location:
Bensenville, IL

Specifications

Condition:
used
Serial number:
85149G
Stock number:
46075067
Sqft:
124
Mounted:
Mounted on 3 Legs
Tubemtl:
304 SS
Shellmtl:
CS
Year built:
1985
Tube length:
78"L
Tube pressure:
300 psi
Shell material:
304 Stainless Steel
Shell pressure:
100 psi
Square footage:
150
Tube temperature:
350 degrees F
Overal dimensions:
105"L x 20"W x 24"T
Shell temperature:
350 degrees F
National board no.:
4199
Size of tube openings:
3"
Horizontal or vertical:
Horizontal
Size of shell openings:
3"
Number of tube openings:
2
Number of shell openings:
1

Description

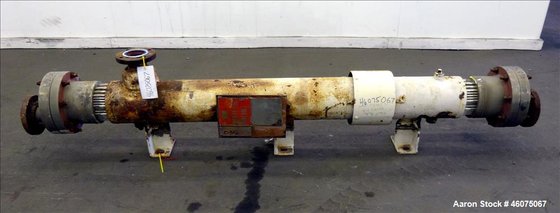

46075067 Used- Southern Heat Exchanger Shell & Tube Heat Exchanger, Approximate 124 Square Feet, Horizontal. Carbon steel shell rated 100 psi at 350 degrees F. (195) 3/8" Diameter x approximate 78" long 304 stainless steel tubes rated 300 psi at 350 degrees F. 304L Stainless steel tube sheet, 304 stainless steel heads. Openings tubes (2) 3", shell (1) 3". Mounted on carbon steel saddles. Serial# 85-149G, National Board# 4199, built 1985.
