Location:
Bensenville, IL
Manufacturer:
ITT

Specifications

Condition:
used
Stock number:
46075068
Sqft:
124
Mounted:
Mounted on 3 Legs
Tubemtl:
316SS
Shellmtl:
CS
Year built:
2001
Tube length:
Approximate 7'
Tube material:
304 Stainless Steel
Tube pressure:
300 psi
Shell material:
Carbon Steel
Shell pressure:
100 psi
Tube temperature:
-20 to 350 degrees F
Overal dimensions:
106"L x 16"W x 24"T
Shell temperature:
-20 to 375 degrees F
National board no.:
86700
Size of tube openings:
3"
Horizontal or vertical:
Horizontal
Size of shell openings:
3"
Number of tube openings:
2
Number of shell openings:
1

Description

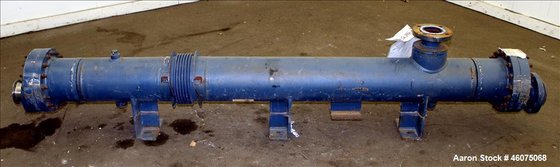

46075068 Used- ITT Industries Shell & Tube Heat Exchanger, Approximate 124 Square Feet, Horizontal. Carbon steel shell rated 100 psi at -20 to 375 degrees F. (200) 3/8" Diameter x approximate 78" long 316 Stainless steel tubes rated 300 psi at -20 to 350 degrees F. Carbon steel tube sheet, steel heads. Openings shell (1) 3", tubes (2) 3". Mounted on (3) legs. Serial# 782576-02-6. National Board# 86700. Built 2001.
