Location:
Bensenville, IL
Manufacturer:
Henry Technologies
Model:
LXXU-10132-410

Specifications

Condition:
used
Serial number:
C260588A1
Stock number:
46035001
Sqft:
153
Mounted:
Saddle Mounted
Tubemtl:
304SS
Shellmtl:
304SS
Year built:
2006
Tube length:
11'
Head material:
304 Stainless Steel
Tube material:
304 Stainless Steel
Tube pressure:
1400
Shell material:
304 Stainless Steel
Shell pressure:
150
Square footage:
153
Tube temperature:
-20 to 200 F
Overal dimensions:
158"L X 28"W X 32"T
Shell temperature:
-20 to 200 F
National board no.:
19957
Size of tube openings:
2"
Horizontal or vertical:
Horizontal
Size of shell openings:
3"
Number of tube openings:
2
Number of shell openings:
2

Description

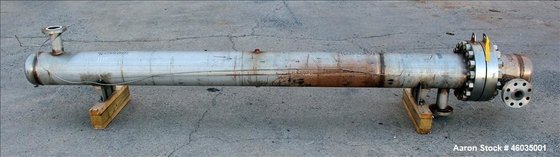

46035001 Used- Henry Technologies U Tube Shell & Tube Heat Exchanger, Approximate 153 Square Feet, Model LXXU-10132-410, Horizontal. 304 Stainless steel shell rated 150psi at -20 to 200 degrees F. (38) 5/8" Diameter x 11' long 304 stainless steel tubes rated 1400 psi at -20 to 200 degrees F. 304 Stainless steel head, and tube sheet. Openings (2) 3", (2) 2". Serial # C260588A-1, National Board # 19957, Built 2006.
