Location:
Bensenville, IL

Specifications

Condition:
used
Serial number:
J051361
Stock number:
42459001
Sqft:
42
Tubemtl:
316L Stainless Steel
Shellmtl:
316L Stainless Steel

Description

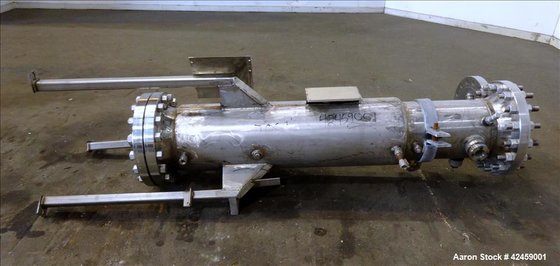

42459001 Used- Superior Fabricators Single Pass Heat Exchanger, 42 Square Feet, 316L Stainless Steel, Vertical. 14-7/8" Diameter x 75-7/8" shell rated 600 psi at 20 to 200 degree F, with a 48" long section of jacket rated 335 psi at 20 to 200 degree F. (54) 1/4" diameter x 48-1/4" long tubes rated 600 psi at 20 to 200 degree F. There is an internal pipe connecting the tubesheets to form a Downcomer" for an agitator impeller, 4" diameter x 46-7/8" long. Provision for an agitator. Openings: heads .687", 1-1/2", 2"; tubes (3) 1/2", 2", (2) 2" sightglass; jacket (3) 1/2", (2) 2". Mounted on 3 stainless steel legs. Built 2005.
