Location:
Bensenville, IL

Specifications

Condition:
used
Serial number:
J051362
Stock number:
42459002
Sqft:
42
Tubemtl:
316L Stainless Steel
Shellmtl:
316L Stainless Steel

Description

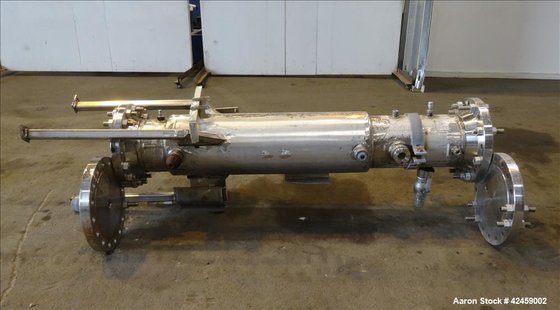

42459002 Used- Superior Fabricators Single Pass Heat Exchanger, 42 Square Feet, 316L Stainless Steel, Vertical. 14-7/8 Diameter x 75-7/8" shell rated 600 psi at 20 to 200 deg F, with a 48" long section of jacket rated 335 psi at 20 to 200 deg F. (54) diameter x 48-1/4 long tubes rated 600 psi at 20 to 200 deg F. There is an internal pipe connecting the tubesheets to form a Downcomer" for an agitator impeller, 4 diameter x 46-7/8 long. Provision for an agitator. Openings: heads .687, 1-1/2, 2; tubes (3) 1/2, 2, (2) 2 sightglass; jacket (3) 1/2, (2) 2. Mounted on 3 stainless steel legs. Built 2005.
