Location:
Bensenville, IL
Manufacturer:
Graham Manufacturing

Specifications

Condition:
used
Stock number:
45402002
Sqft:
1160
Tubemtl:
304SS
Shellmtl:
CS

Description

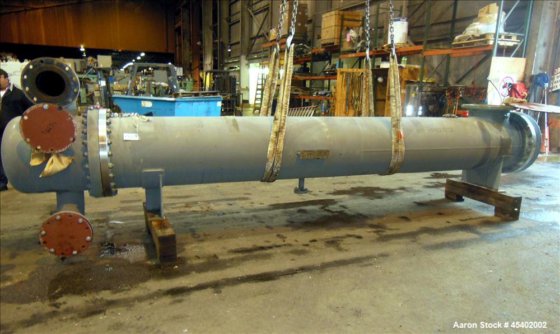

45402002 Unused- Graham Corporation Multi-Pass Shell & Tube Heat Exchanger, Approximate 1160 Square Feet, Horizontal. Carbon steel shell rated Full Vacuum & 20 psig at 250 degrees F. (370) 3/4" Diameter x 16 long 304 stainless steel tubes rated 400 psig at 250 degrees F. 304L Stainless steel tube sheet, carbon steel heads. Openings shell 18" vapor outlet, 4" vapor inlet, 2" condensate outlet, openings heads (2) 8". Mounted on (2) saddles. National Board#30843, Serial# 01-46300-8, Built 2002.
