Location:
Bensenville, IL
Manufacturer:
No
Model:
NEN

Specifications

Condition:
used
Serial number:
MDI3339
Stock number:
42888017
Sqft:
2639
Tubemtl:
304 Stainless Steel
Shellmtl:
Carbon Steel

Description

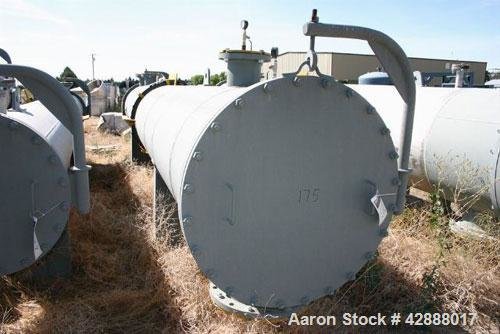

42888017 Unused- Melter S.A. de C.V. Single Pass Shell & Tube Heat Exchanger, 2639 Square Feet, Type NEN, Horizontal. Carbon steel shell rated 80 psi at 20 to 300 degrees F. (504) 1 Diameter x 20 long BWG. 18 (0.049 AW) 304 stainless steel tubes rated 100 psi at 20 to 250 degrees F. 304 Stainless steel expansion joint, and tubesheet. Openings shell 2'', 6'', 20'', openings for tubes (2) 16''. Flat bolt on stainless steel clad ends with Davit arms. Mounted on carbon steel saddles. Built 2007.
