Location:
Bensenville, IL
Manufacturer:
No

Specifications

Condition:
used
Serial number:
MDI33334
Stock number:
42888005
Sqft:
3746
Tubemtl:
Stainless Steel
Shellmtl:
Carbon Steel

Description

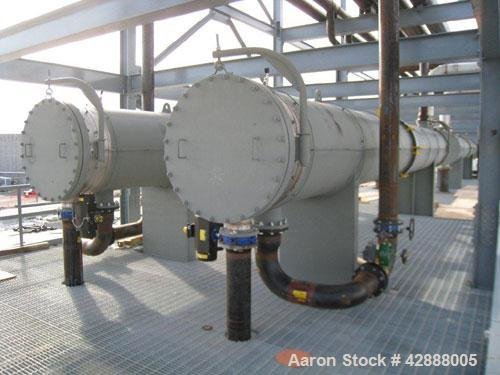

42888005 Unused- Melter S.A. de C.V. 2 Pass Shell & Tube Heat Exchanger, 3746 Square Feet, Type NEN, Horizontal. Carbon steel shell rated 100 psi at –20 to 250 degrees F. (318) 1-1/2’’ diameter x 30’ long BWG. 16 (0.065’’ AW) 304 stainless steel tubes rated 100 psi at –20 to 250 degrees F. 304 Stainless steel expansion joint, and tubesheet. Openings shell (2) 10’’, openings for tubes 8’’, (2) 14’’. Flat bolt on stainless steel clad ends with Davit arms. Mounted on carbon steel saddles. Built 2007.
