Location:
Bensenville, IL
Manufacturer:
No
Model:
NEN

Specifications

Condition:
used
Serial number:
MDI3338
Stock number:
42888014
Sqft:
5184
Tubemtl:
304 Stainless Steel
Shellmtl:
Carbon Steel

Description

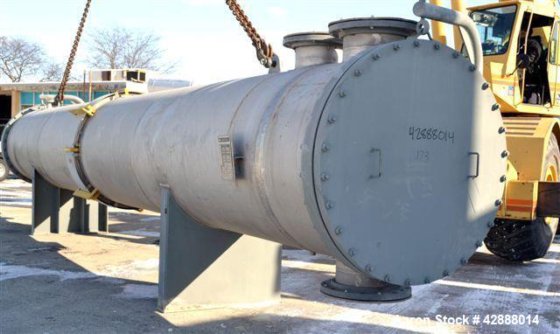

42888014 Unused- Melter S.A. de C.V. 2 Pass Shell & Tube Heat Exchanger, 5184 Square Feet, Type NEN, Horizontal. Carbon steel shell rated 100 psi at 20 to 350 degrees F. (440) 1-1/2 Diameter x 30 long BWG. 16 (0.065 AW) 304 stainless steel tubes rated 100 psi at 7 to 350 degrees F. 304 Stainless steel expansion joint, and tubesheet. Openings shell 3'', 8'', 14'', openings for tubes, (2) 16''. Flat bolt on stainless steel clad ends with Davit arms. Mounted on carbon steel saddles. Built 2007.
