Location:
Bensenville, IL
Model:
II-V

Specifications

Condition:
used
Stock number:
45110005
Sqft:
37.67
Material:
316L SS

Description

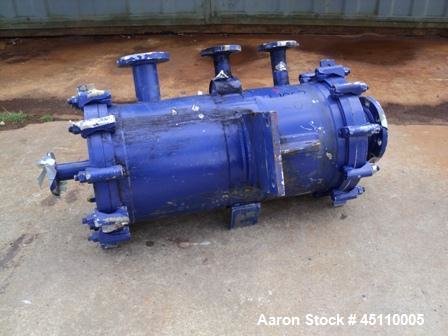

45110005 Used- Alfa Laval Spiral Heat Exchanger, Model II-V, 37.67 Square Feet(3.5 square meters), 316L Stainless Steel, Vertical. Channel A 5mm spacing with 25 gallon (95 liter) capacity. Rated 90 psi (6.15 bar) design pressure at 212 degrees F (100 degrees C). Channel B 5mm spacing with 4 gallon (15 liter) capacity. Rated 97 psi (6.69 bar) design pressure at 212 degrees F (100 degrees C). Spiral flow with cross flow parallel to the axis of the spiral element. Has clamp down ends. Body approximately 16.7" (425mm) diameter x 34" (865mm) high. Mounted on (2) lugs.
