Location:
Bensenville, IL
Manufacturer:
Graham
Model:
30S4C-34LL

Specifications

Condition:
used
Stock number:
46060002
Sqft:
327
In psi:
1200
Out psi:
500
Material:
304SS
Year built:
2010
Tube material:
304 Stainless Steel
Tube pressure:
600 PSI
Shell material:
Carbon Steel
Shell pressure:
500 PSI
Square footage:
327
Tube temperature:
1200 Degrees F
Overal dimensions:
67"L X 56"W X 54"T
Shell temperature:
400 Degrees F
National board no.:
39134
Size of tube openings:
2"
Size of shell openings:
4"
Number of tube openings:
2
Number of shell openings:
2

Description

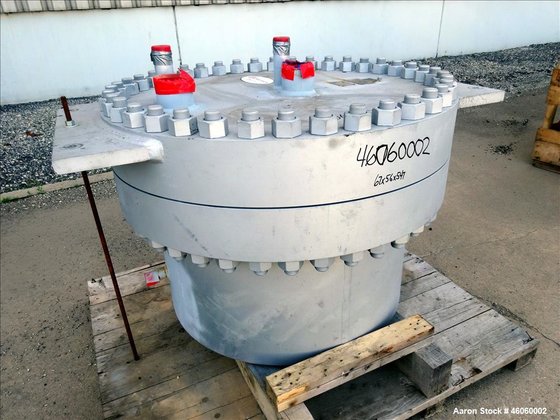

46060002 Unused- Graham Corporation Spiral Heliflow Heat Exchanger, 327 Square Feet, Model 30S4C-34LL. (30) 3/4" Diameter 304 stainless steel coils with 5/16" spacing, rated 1200 psi at 600 degrees F. Carbon steel shell rated 500 psi at 400 degrees F. 304 Stainless steel, and carbon steel manifolds. Openings tubes (2) 2" square end, openings for shell (2) 4" butt end. Includes (2) carbon steel mounting brackets. Serial# 10-76178-2, National Board# 39134. Built 2010.
