Location:
Bensenville, IL
Model:
1-H

Specifications

Condition:
used
Stock number:
40141019
Sqft:
1060
In psi:
100
Out psi:
100
Material:
316 Stainless Steel

Description

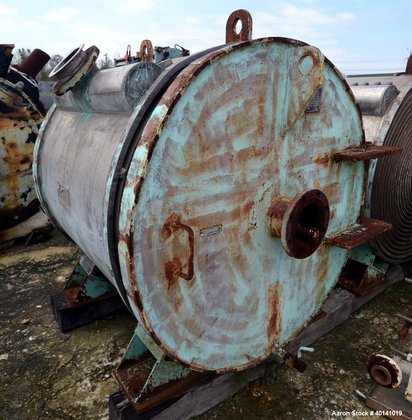

40141019 Used- American Heat Reclaiming Horizontal Spiral Heat Exchanger, Type 1H, 1060 Square Feet, 316 Stainless Steel. Hot and cold side rated 100 psi at 200 degrees F. Carbon steel removable heads, (1) with 316 stainless steel clad. Inner pass cross section hot side 0.375'' x 48'', length 130.5'; outer pass cross section cold side 0.50'' x 48'', length 134.4'. Openings: hot side (2) 6", cold side (2) 6". Mounted on carbon steel saddles. Serial# 12109, National Board# 9555, built 1977.
