Location:
Bensenville, IL
Manufacturer:
Alfred Bolz

Specifications

Condition:
used
Stock number:
84476
Gallons:
114
Subcategory:
Kettles

Description

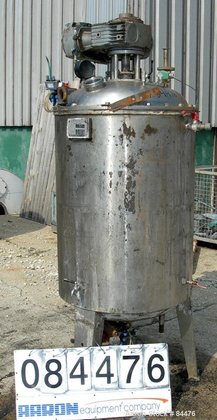

84476 Used- Alfred Bolz GmbH Kettle, 114 Gallon, 304 Stainless Steel, Vertical. Approximate 28" diameter x 40" straight side, dish bolt-on top, dished bottom. Internal rated 0 BAR at 95 Degrees C (203 Degrees F), stainless steel jacket rated 0 BAR at 95 Degrees C (203 Degrees F), and approximately 2 rows of 9 turns 1" diameter pipe coil rated 7 BAR (101 PSI) at 115 Degrees C (239 Degrees F). 2" diameter shaft with a paddle blade, driven by a 1.1 KW (1.5 HP), 3/60/277/480 Volt, varispeed motor. Openings: top (2) 4" sight glass, (3) 1" NPT; 3" center bottom outlet. Mounted on 3 stainless steel legs. Approximate 6" discharge height.
