Location:
Bensenville, IL
Manufacturer:
Lee Ind
Model:
637U
Size:
3"

Specifications

Condition:
used
Serial number:
C2434B
Stock number:
45706015
Bottom:
Dished Bottom
Gallons:
637
Mounted:
Side Lug Mounted
Agitator:
Yes
Diameter:
54"
Jacket psi:
50
Year built:
1995
Agitator hp:
3/4
Outlet size:
3"
Agitator rpm:
1725
Agitator type:
Top Entering
Straight side:
56"
Agitator cycle:
60
Agitator phase:
3
Jacket material:
304 Stainless Steel
Outlet location:
Bottom
Agitator voltage:
208-230/460 Volt
Agitator location:
Top Center
Overal dimensions:
124" x 72" x 72"T
Pressure - jacket:
50
Temperature - jacket:
-20 to 300
Agitator manufacturer:
Chemineer
Agitator shaft diameter:
1"
Material of construction:
316L Stainless Steel
Subcategory:
Kettles

Description

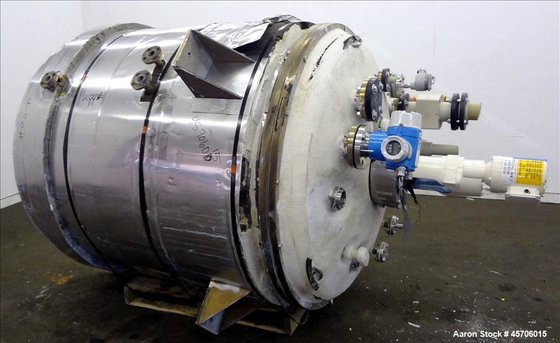

45706015 Used- Lee Industries Kettle, 637 Gallon, Model 637U, Teflon Coated 316L Stainless Steel, Vertical. 54" Diameter x 56" straight side, bolt on dished top, dished bottom. 304 Stainless steel Uniflow coil jacket rated 50psi at -20 to 300 degrees F. Top entering Chemineer agitator, no tag. Approximate 1" diameter Teflon coated shaft and 3 blade prop with a mechanical seal. Driven by a 3/4hp, 3/60/230/460 volt, 1725 rpm motor. Openings top (3) 1", 1-1/2", 2", (6) 3", 5" drive. Approximate 3" center bottom outlet. Mounts on (4) stainless steel side lugs. National Board#6570, serial#C-2434-B, built 1995.
