Location:
Bensenville, IL
Manufacturer:
Olsa

Specifications

Condition:
used
Stock number:
11453253
Gallons:
2642
Agitator:
Twin Motion
Jacket psi:
65.3
Subcategory:
Kettles

Description

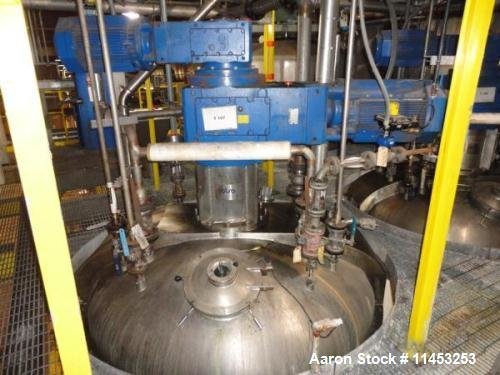

11453253 Used- 10,000 liter (2642 gallon) Olsa Twin Motion Vacuum Kettle, Monel 400 construction. Approximately 90" diameter x 98" straight side, semi elliptical removable top, semi elliptical bottom, jacketed on bottom and full straight side rated 65.3 psi at 203f. Ancho agitator with side wall scrap driven by 37 kw, 440 volt motor, 5-19 rpm shaft speed. Inner opposing paddle agitator driven by 18.5 kw, 440 volt motor, 8-32 rpm shaft speed, 15" top manway, 4", (4) 3", (4) 2", (6) 1.5" top nozzles, 4" bottom outlet, on 6 legs. Ross Engineering control panel with Square D Altivar 58 VFD motor controllers, 460 volt, panel serial# 201-006. Jacket certified by ICOSS, serial# 483. National board# 125, new 2001.
